Supplier audit
Air-filter manufacturing audit.
Review manufacturing controls and quality records at a filter supplier.
Raw-material storage from the factory audit.
- Role
- Supplier auditor
- Period
- 2024
- Methods
- Factory audit · Quality records
- Status
- Supplier audit
Decision supported
Assess the documented manufacturing and quality-control arrangements.
Project photographs
Follow the engineering record.
Inspection record in technical sequence. Original visible location, date and time stamps are retained. Photographs record observed conditions; they do not establish final acceptance.
17 project images · Select any image to view the original full frame.

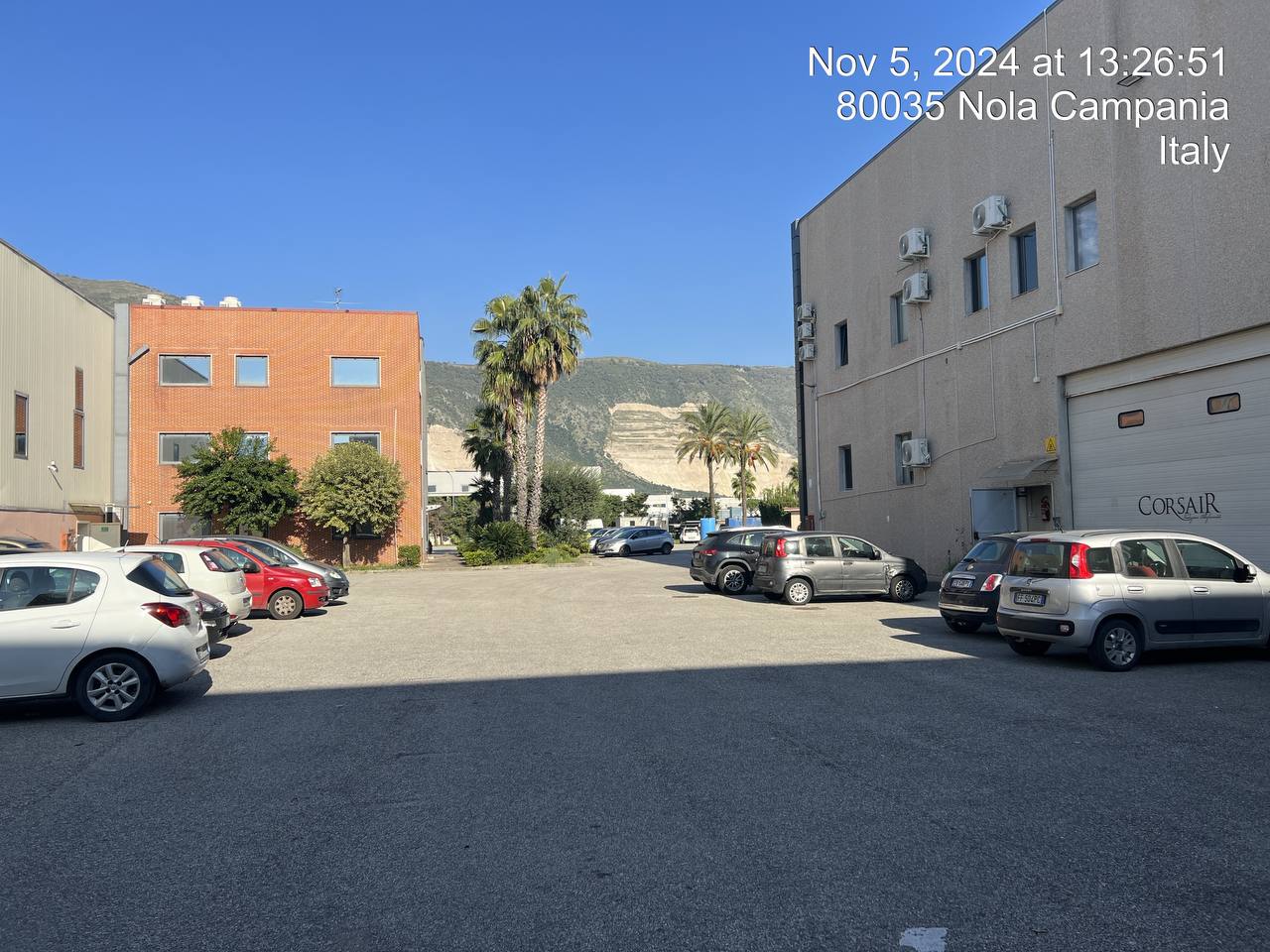

Facility context.

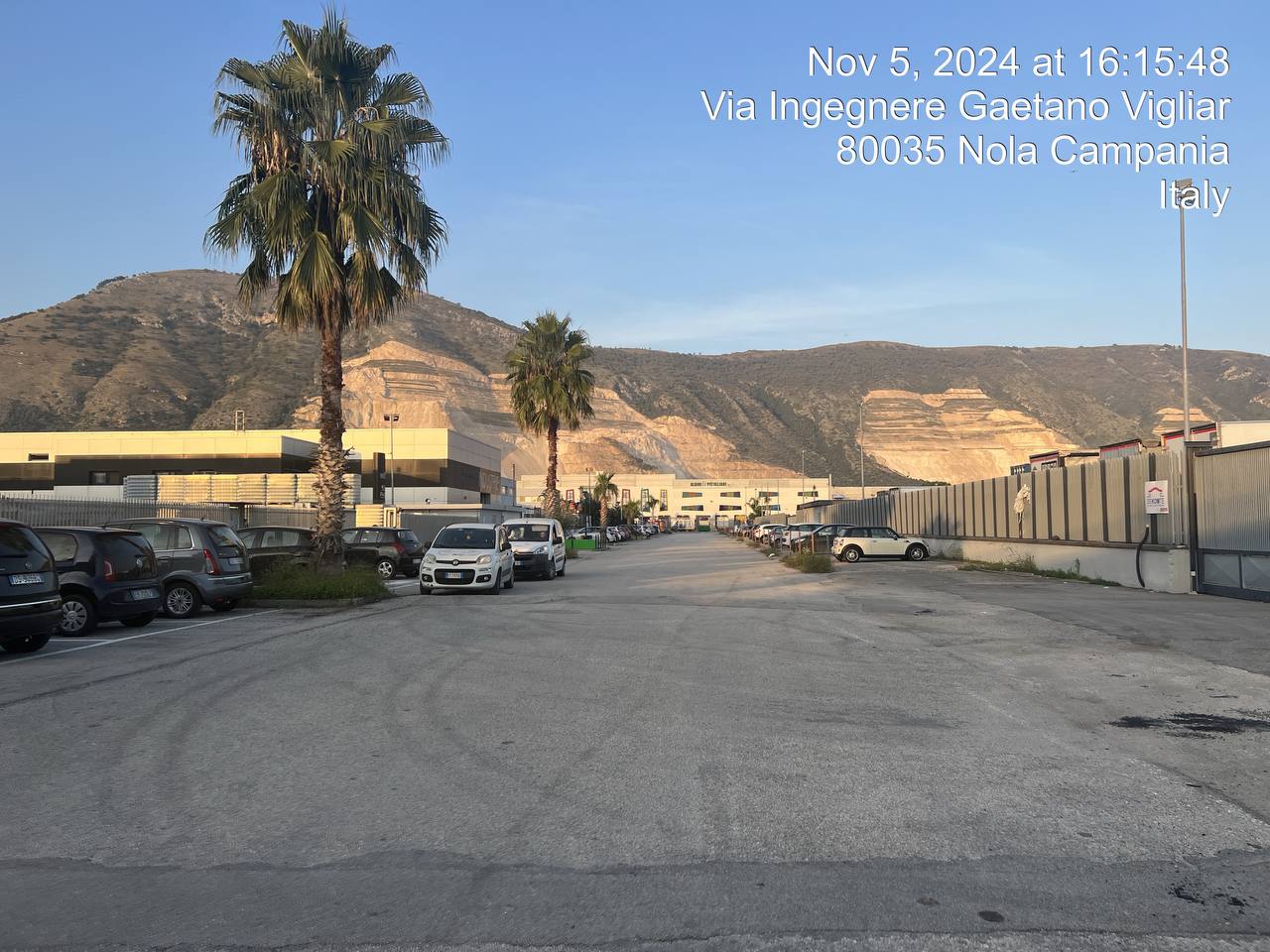

Site context.

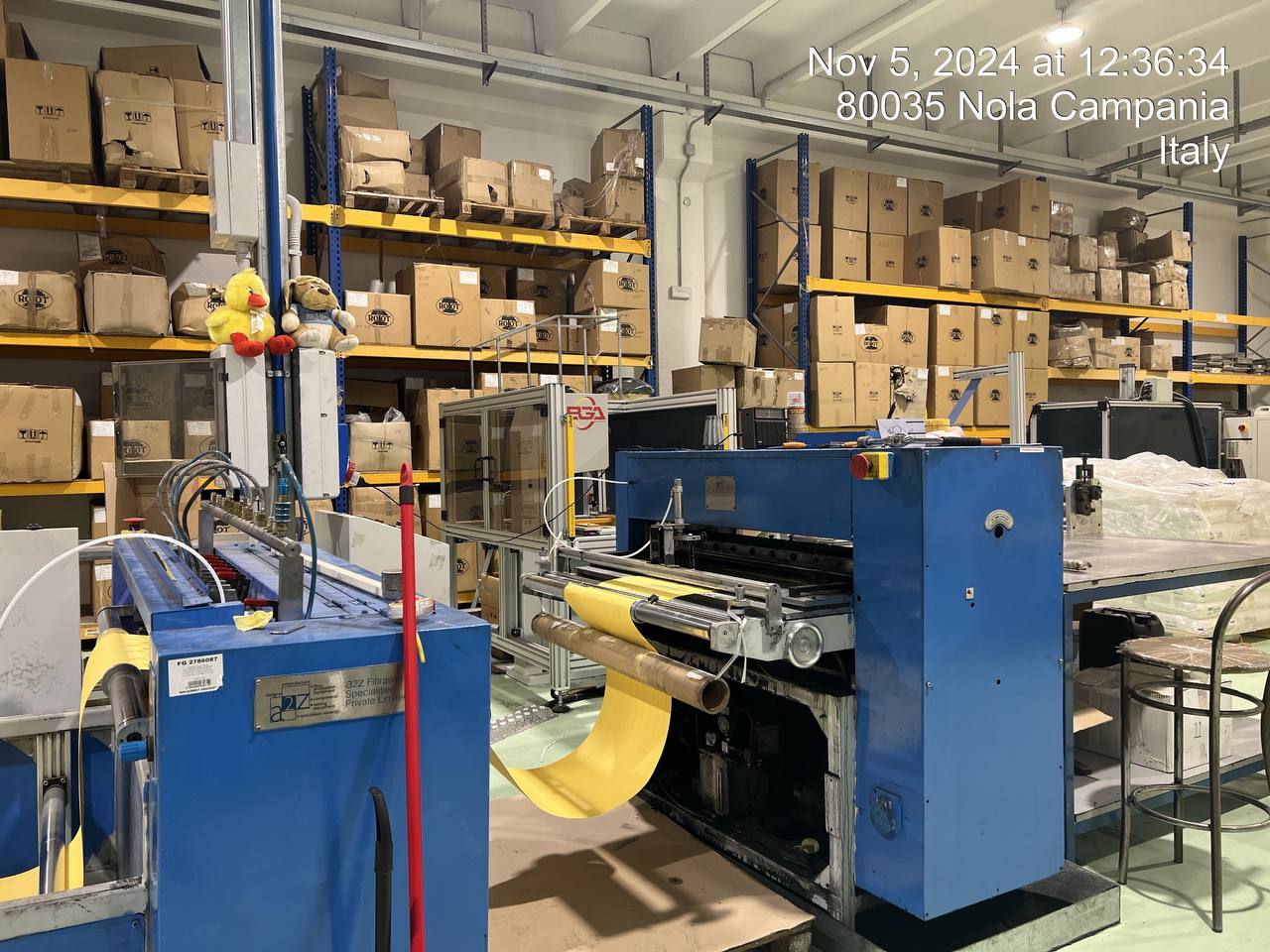

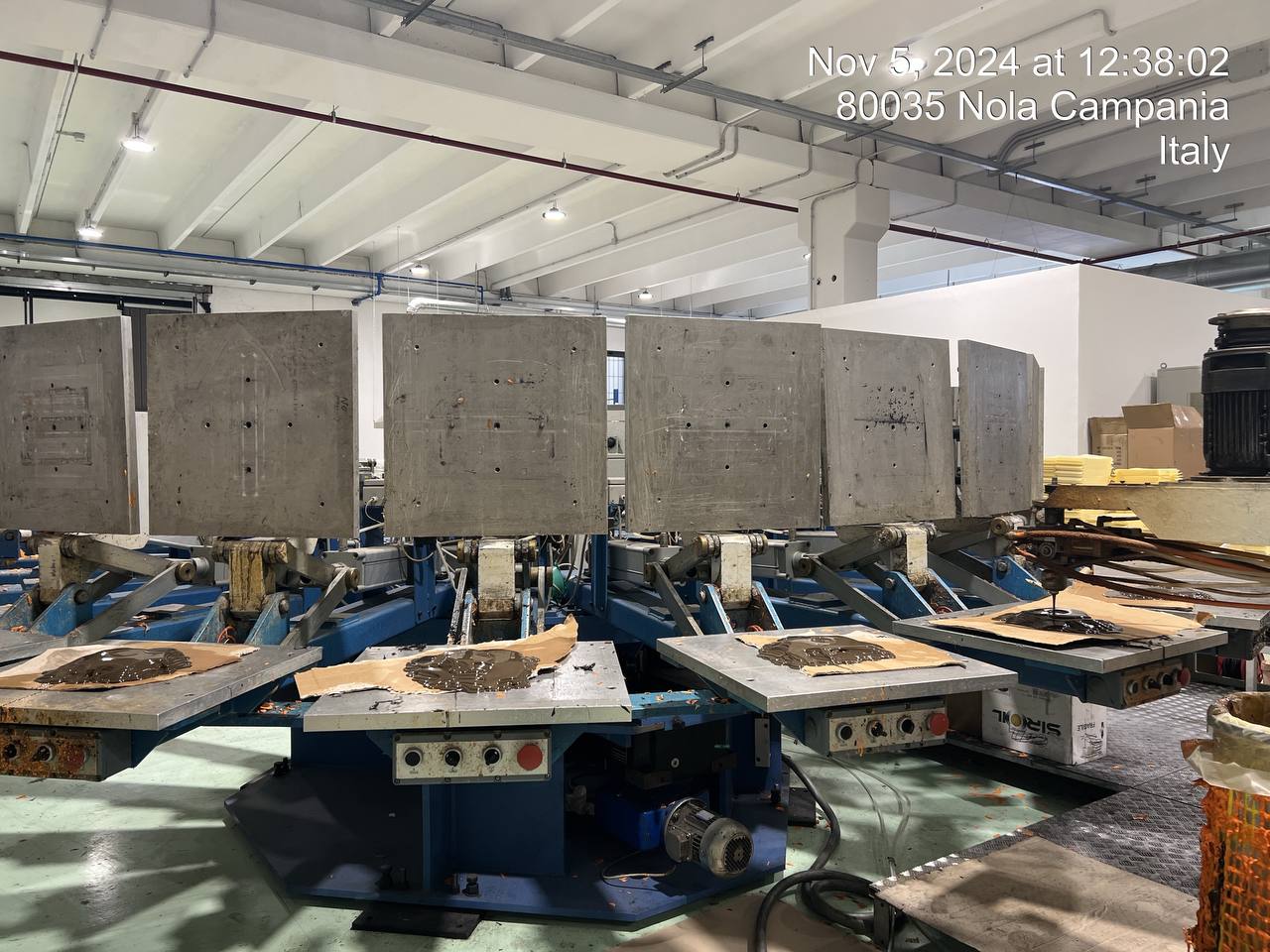

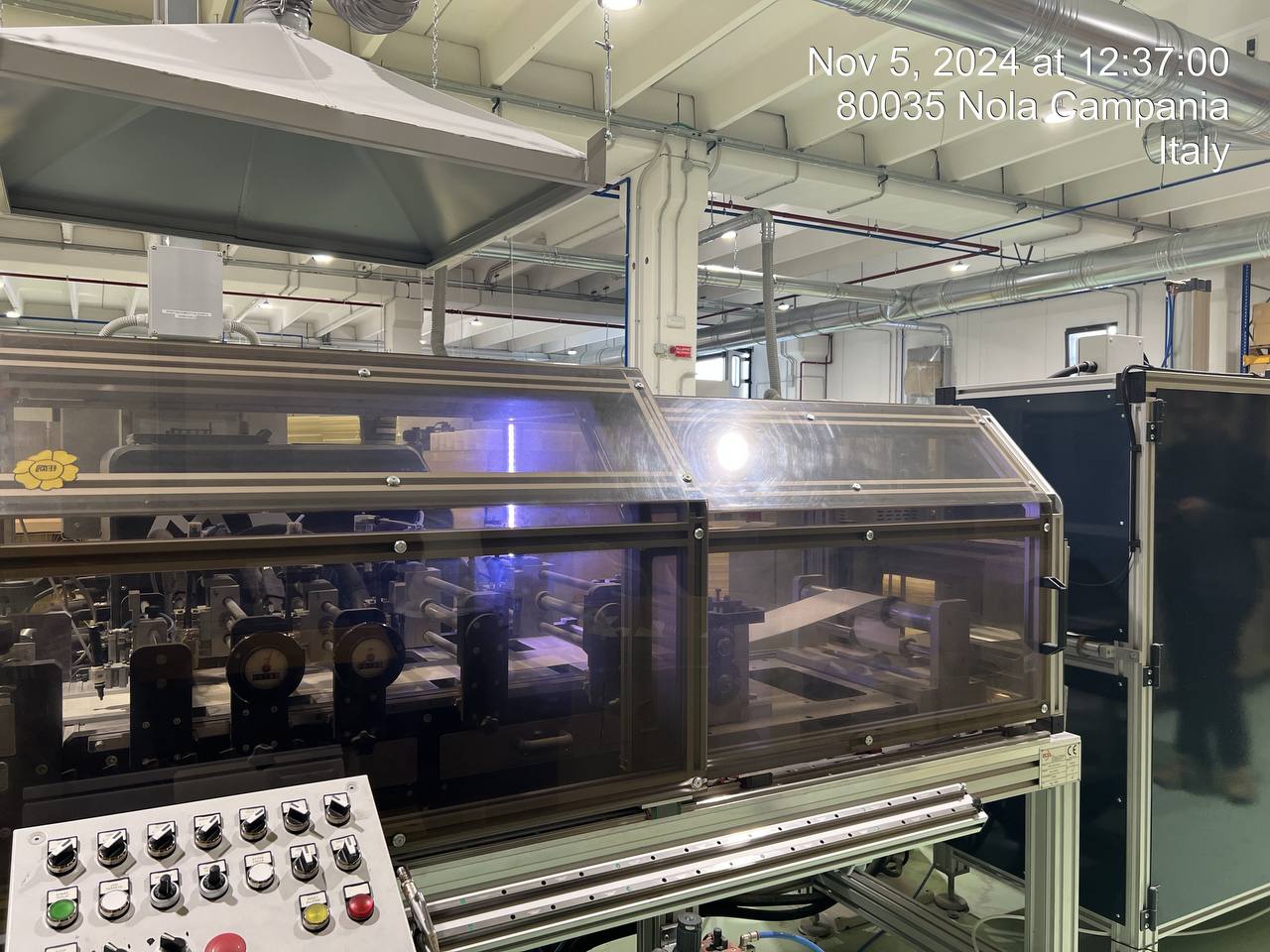

Manufacturing equipment.
Manufacturing equipment.
Production station.
Manufacturing equipment.

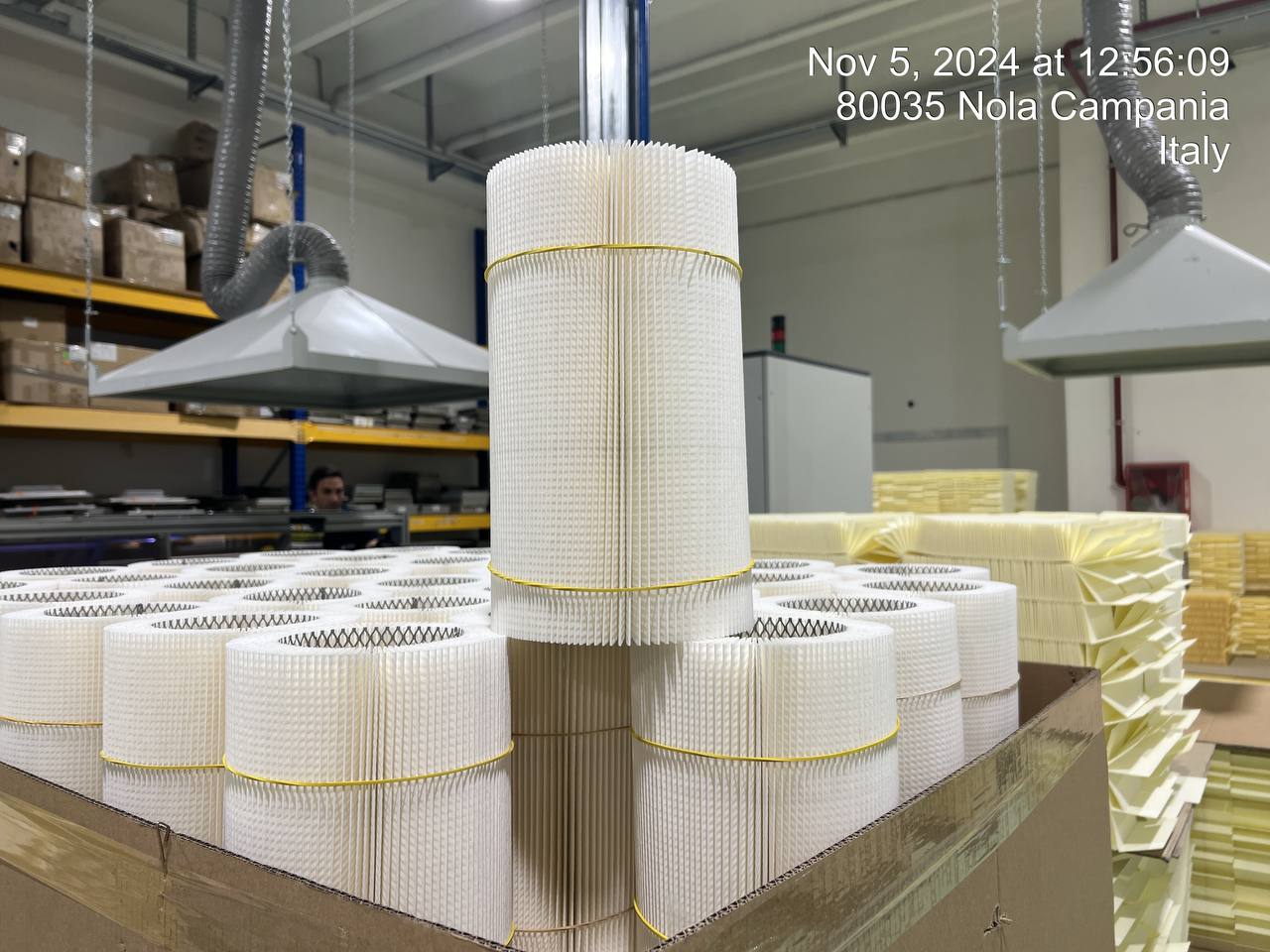

Product context.

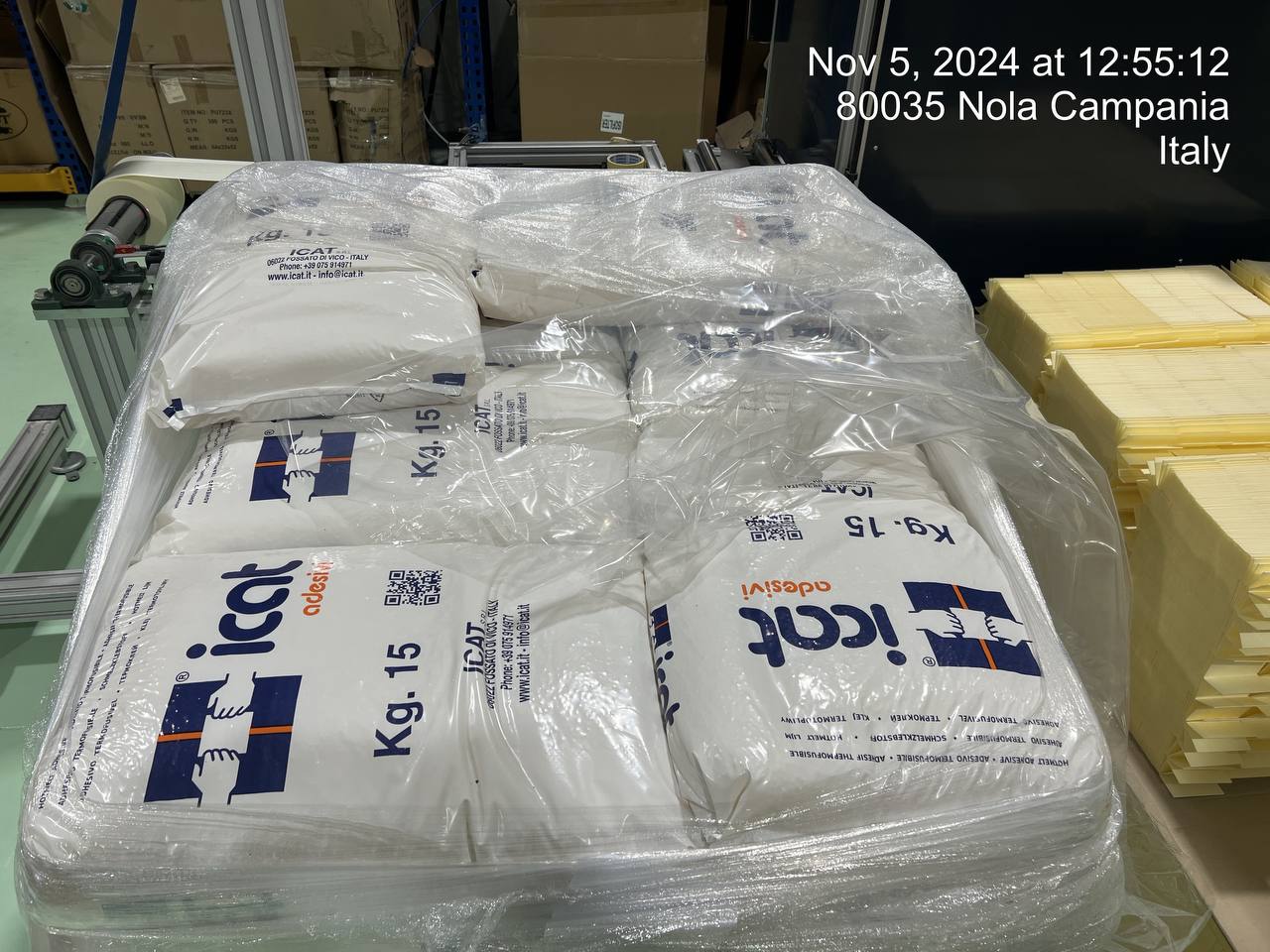

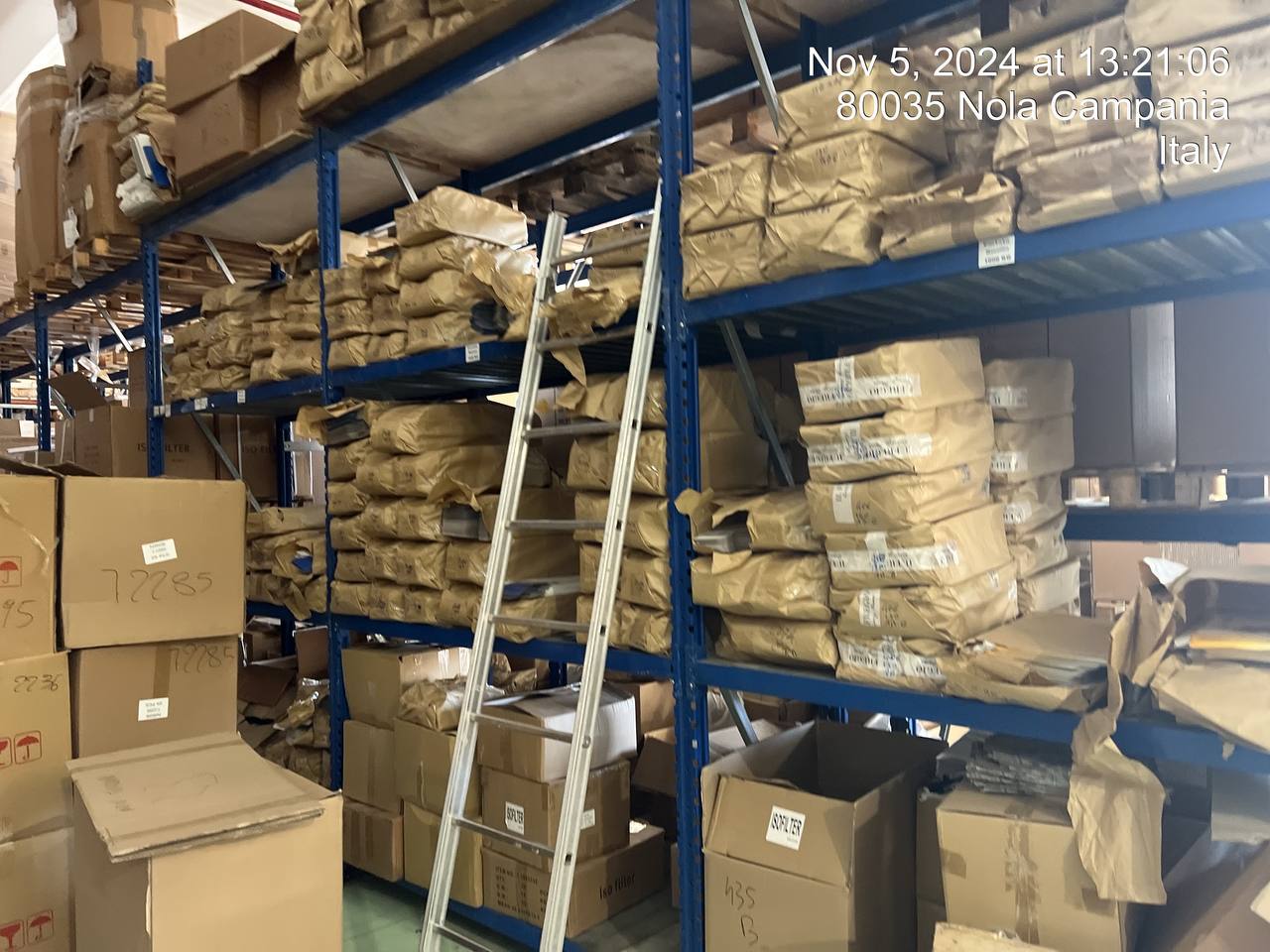

Raw material.

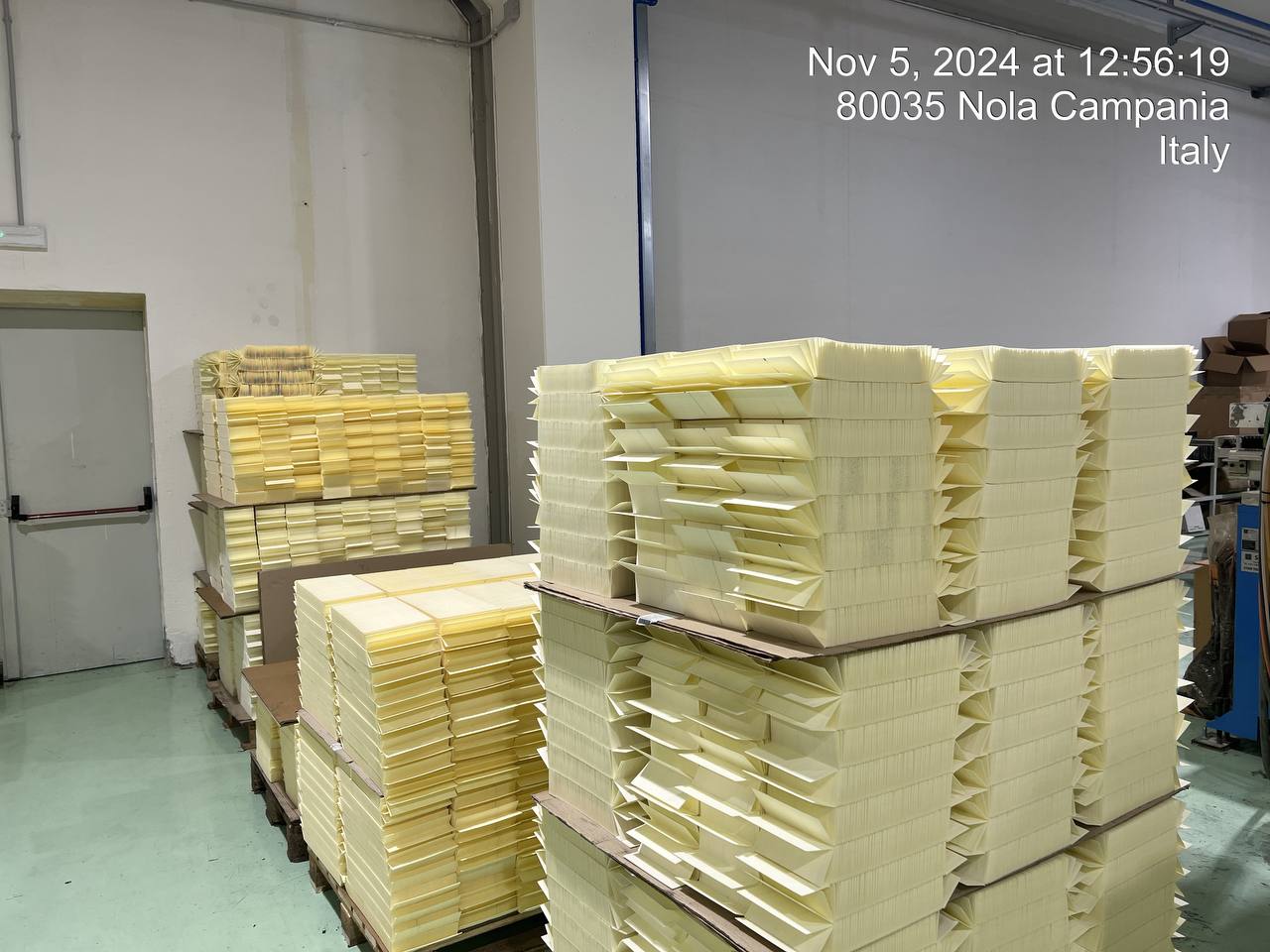

Product storage.

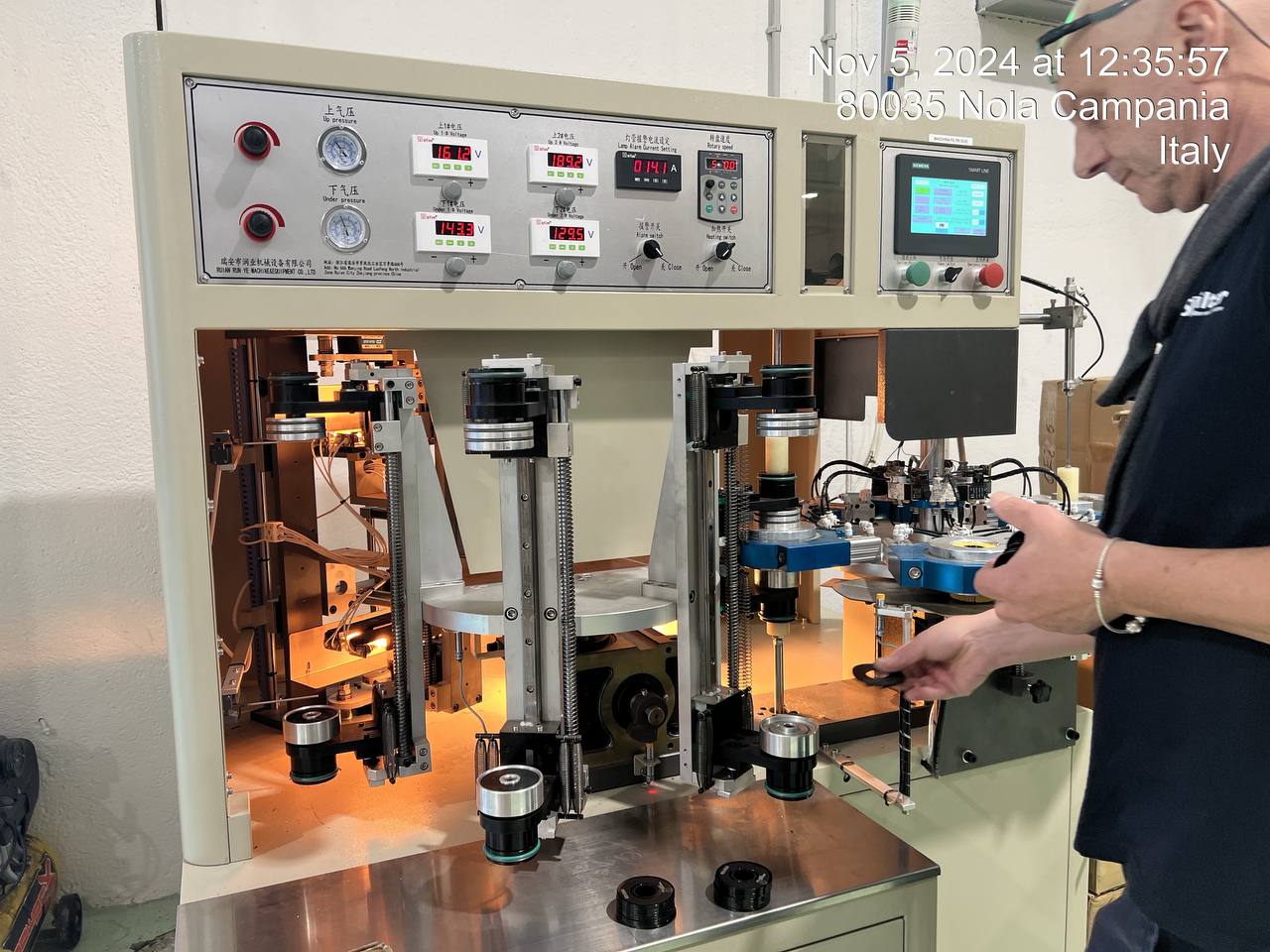

Production equipment detail.
Material storage.

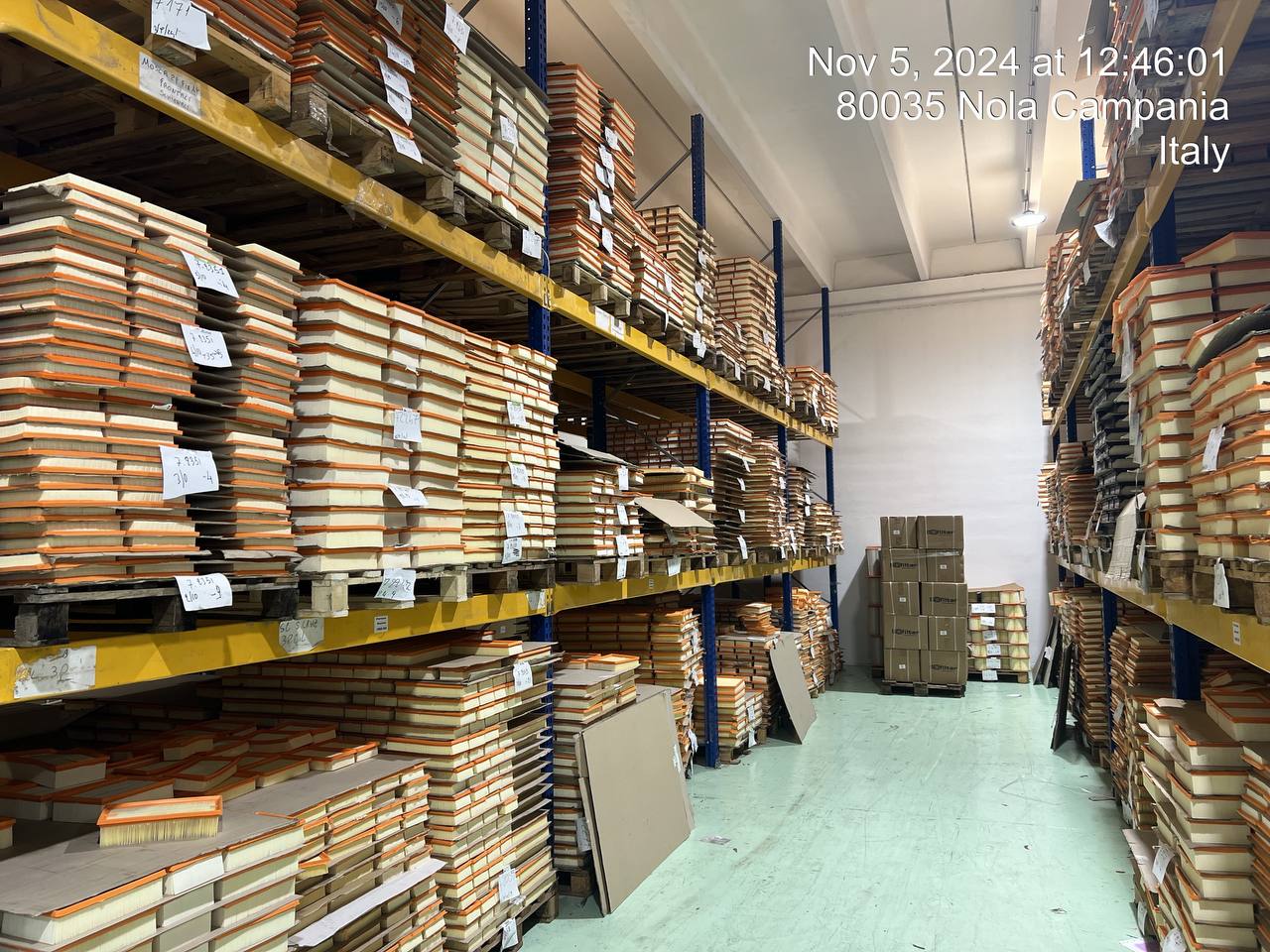

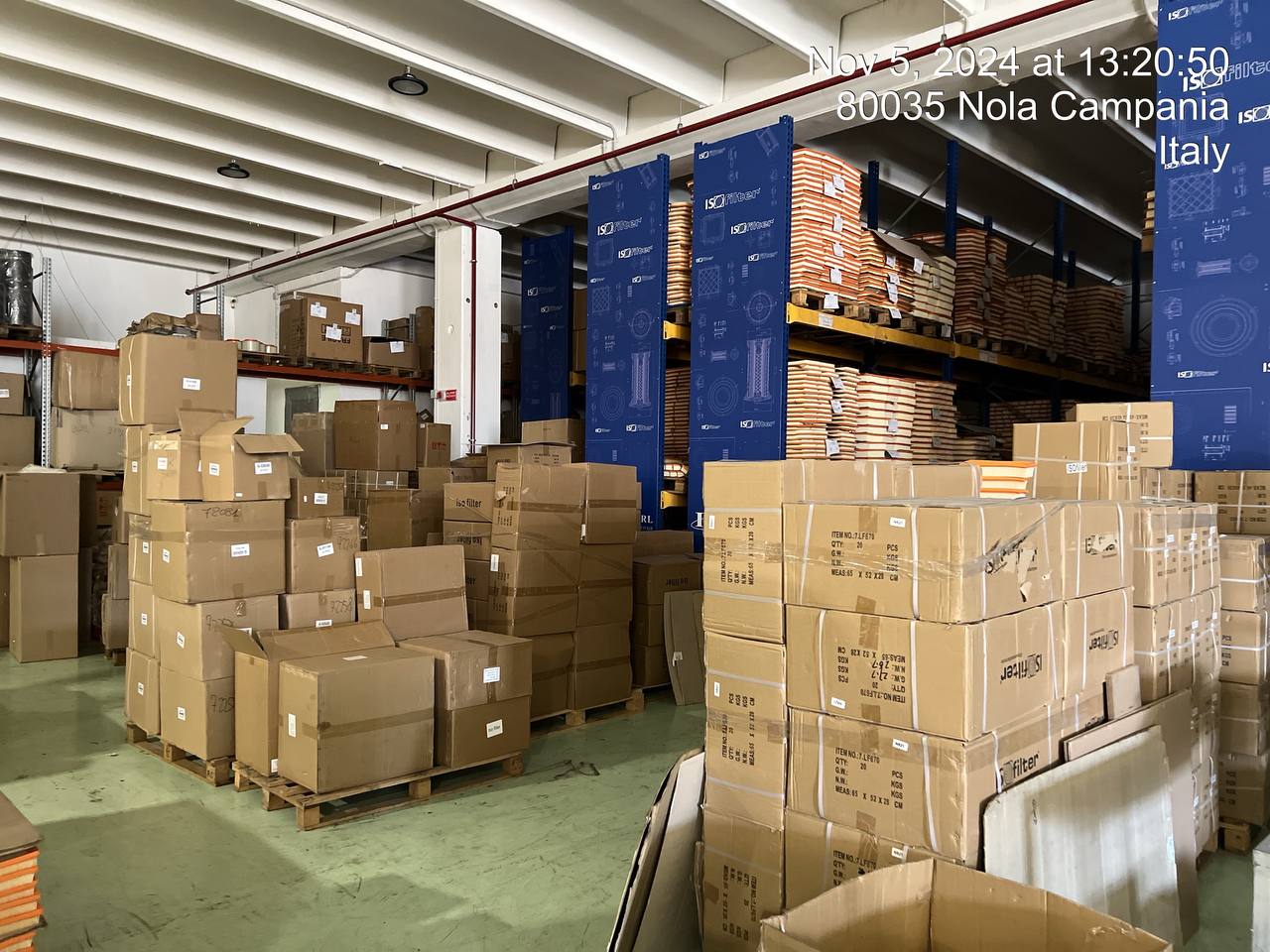

Warehouse storage.
Warehouse packing.

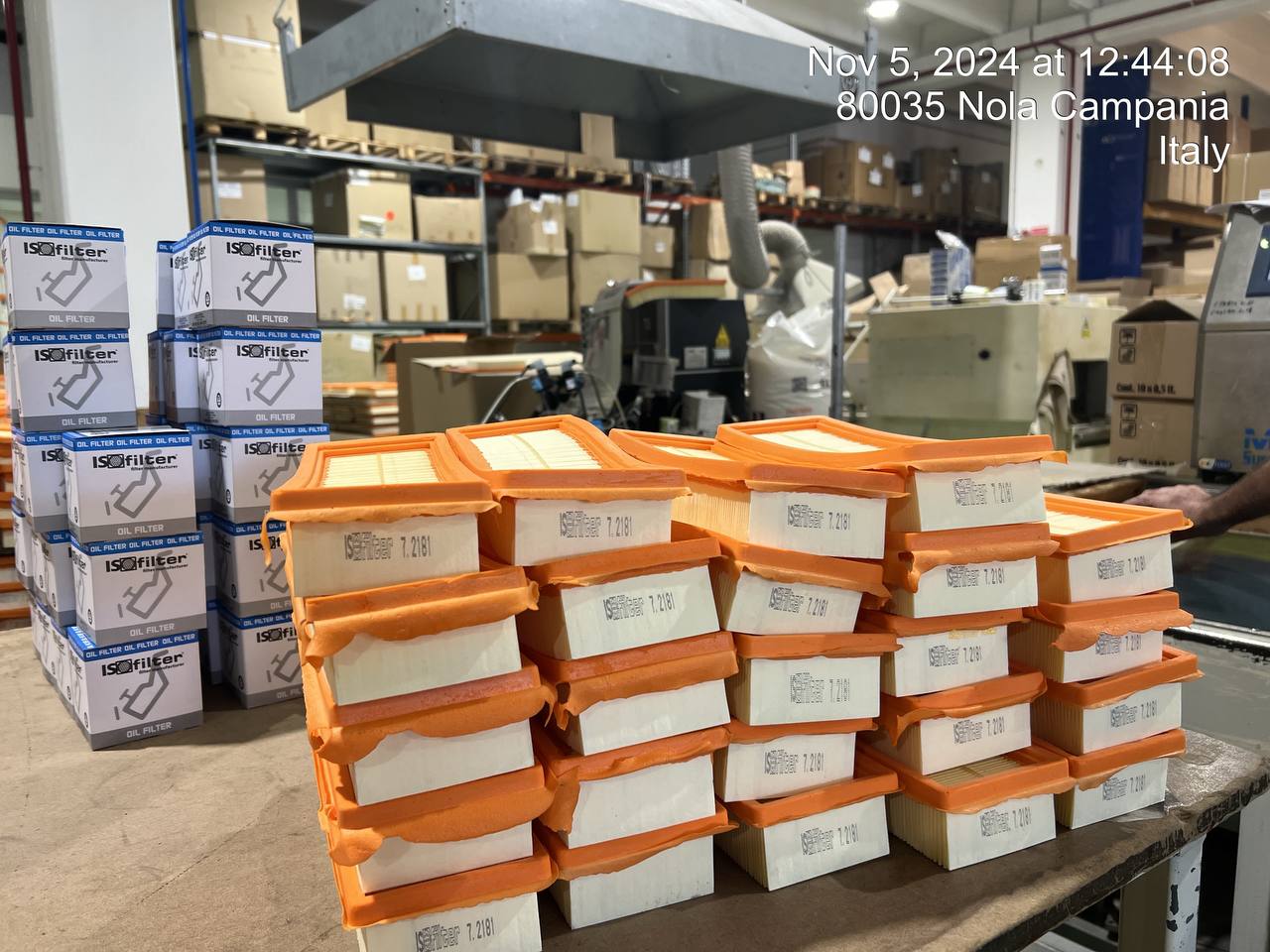

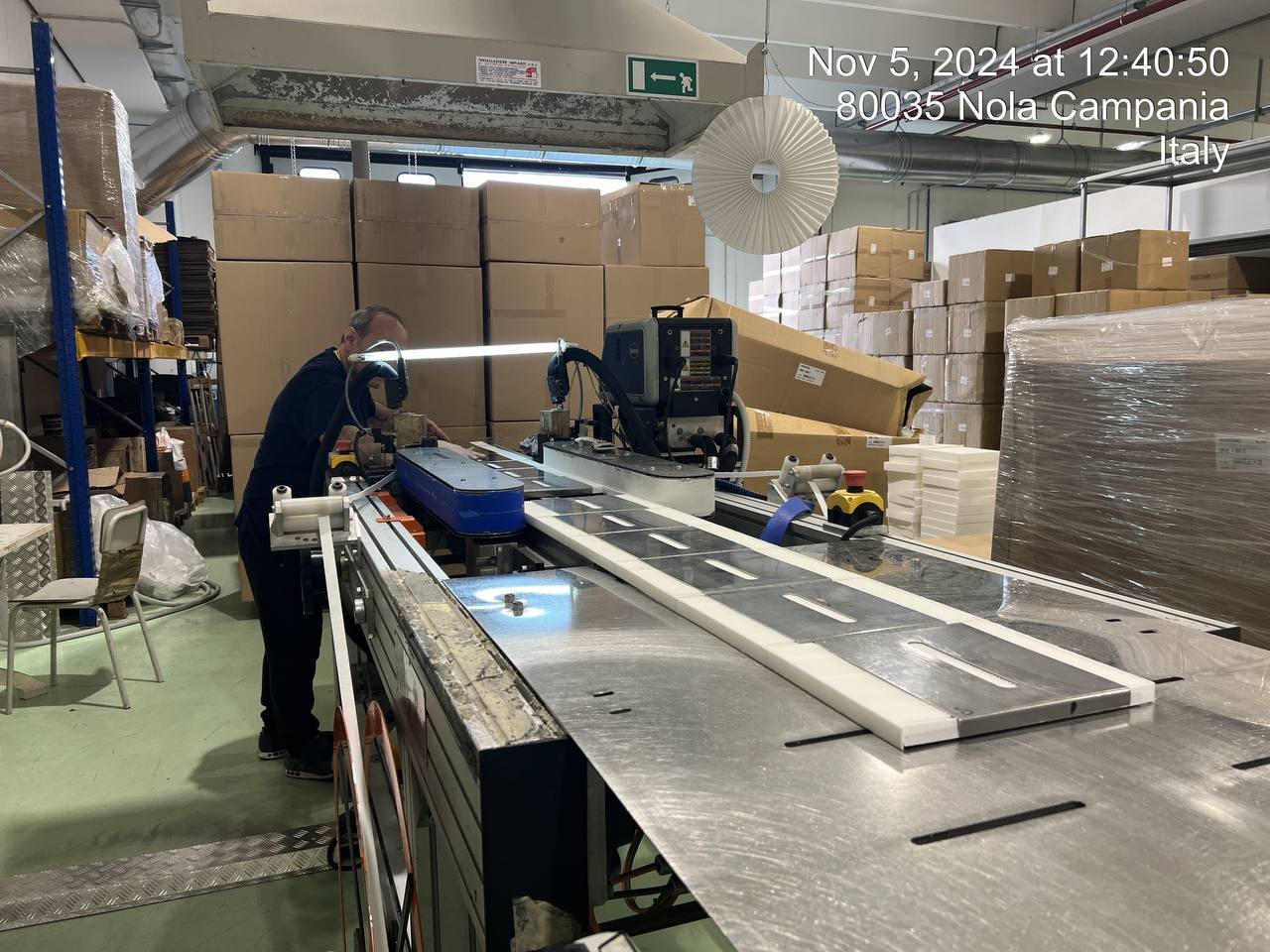

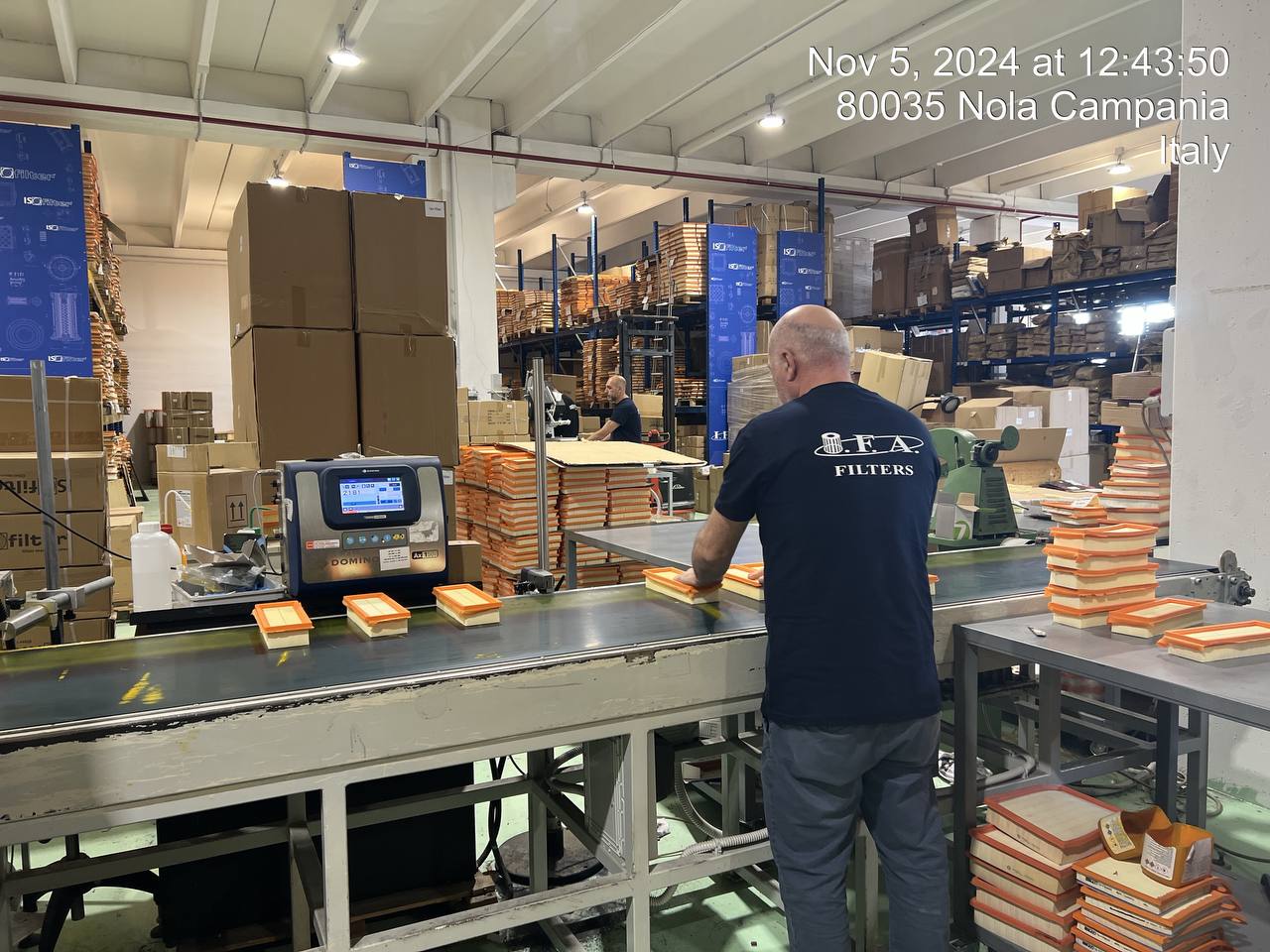

Packing station.
Packing station.
Packing station.

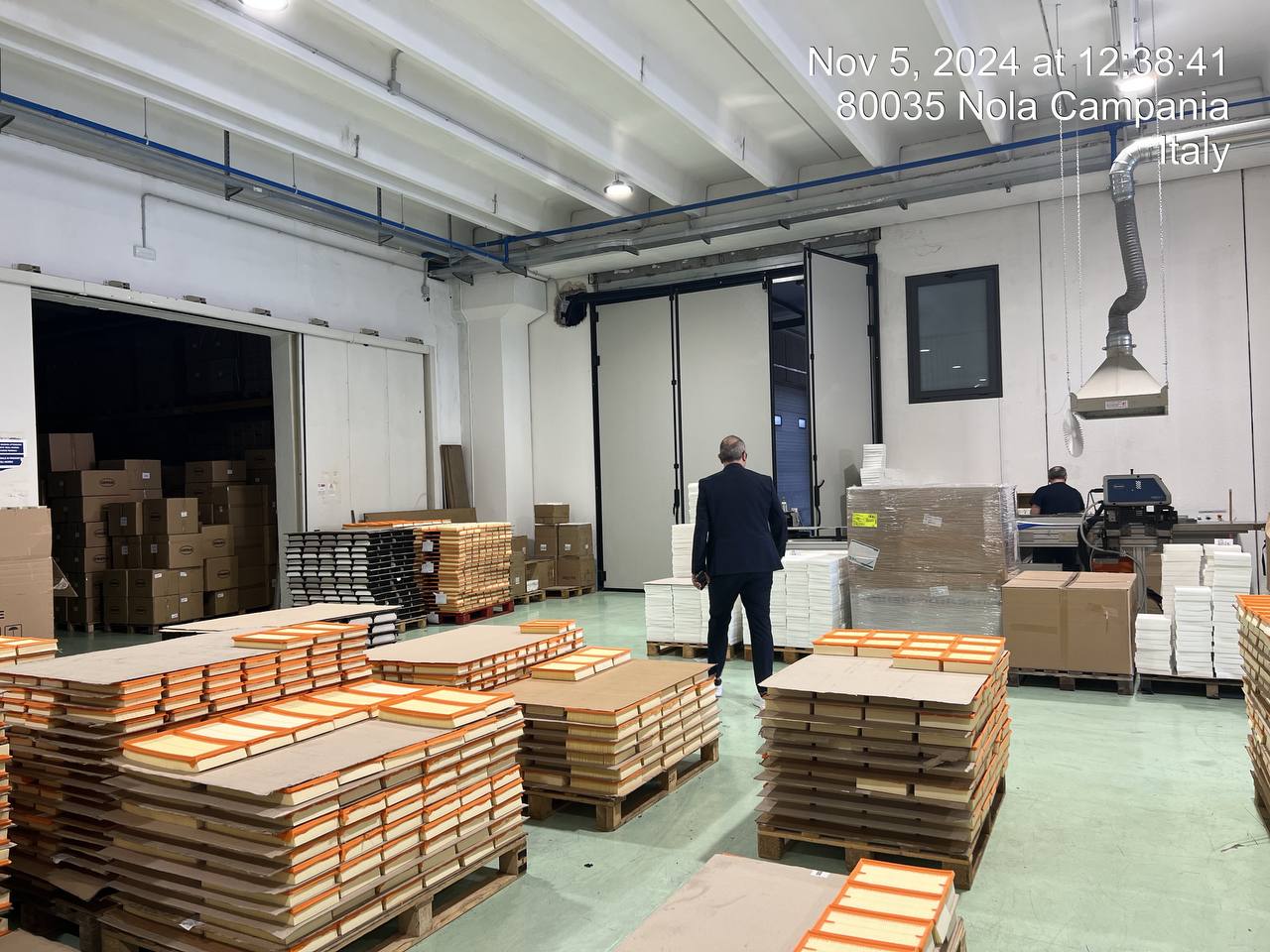

Production area.
Engineering record
Scope, method and evidence.
Report, attendance and curated factory photographs support the audit scope. The attendance date is ambiguous; only the year is shown. Final corrective closure is not established.
01Engineering question
Review manufacturing controls and quality records at a filter supplier.
Context: Industrial filtration.
02Role and documented scope
Supplier auditor
03Methods and evidence
The factory audit reviewed operations, incoming and in-process controls, final inspection records, quality documentation and nonconformity handling. A named attendance record and curated factory photographs corroborate the visit. Commercial capacity, revenue and client information remain private.
Project-specific reports or instructions establish the stated participation. Confidential originals, commercial identifiers and signatures are withheld.
04Interpretation and limitations
Observed facts and requested actions remain separate from confirmed outcomes. Corrective closure, whole-project certification and financial savings are not inferred.
