Web-panel shear prediction.

Compare connection alternatives using the same input definitions.

Supplied numerical and reference-test comparison for a steel connection. The reference-test photograph is not evidence of a test performed by Sina. Publication · 10.1016/j.rineng.2024.103454

Role: Research co-author · credited developer
Period: 2024
Methods: ML · SHAP · Python GUI
Status: Published research / software

Engineering software / Desktop interface

A defined input.
An inspectable decision.

For connection engineers

Compare connection alternatives using the same input definitions.

01 / INPUT

Set the engineering case

End-plate dimensions, bolt diameter and spacing, and beam/column second moments of area

02 / OUTPUT

Inspect the result

Predicted web-panel shear resistance (kN)

03 / DECISION

Compare the next options

Screen panel-zone capacity before selecting cases for detailed checks.

Technical basis

ML · SHAP · Python GUI

Validation evidence

Credited interface source, model comparisons and published research.

Current scope

Prediction is bounded by the reference-data domain; independent resistance checks remain necessary.

Public deployment has not been verified. The supplied interface and source establish the implementation shown.

Project figures

Follow the engineering record.

Supplied FE/reference-test comparisons in technical order. Reference tests and reference-data generation retain their source attribution.

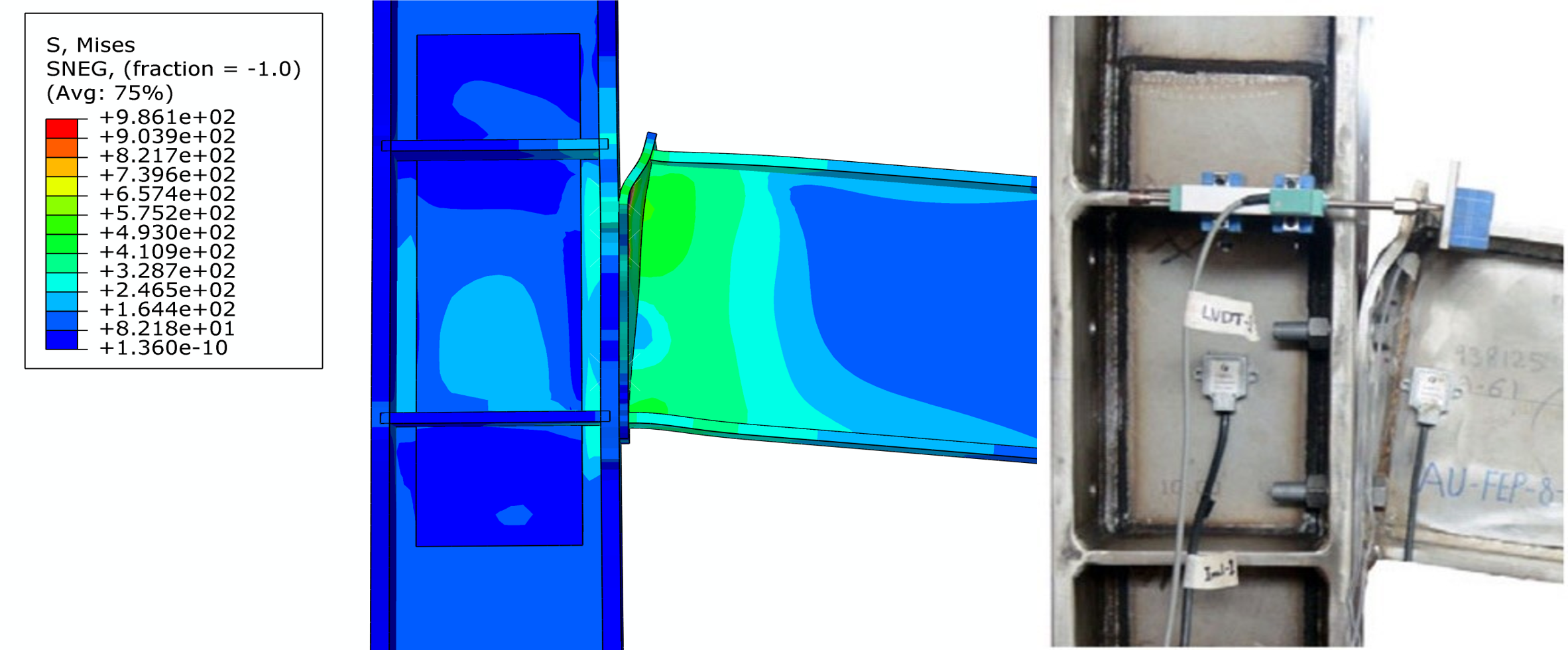

01 / FE / reference comparison 1
Supplied numerical and reference-test comparison 1. Reference-test photography and reference-data generation are not attributed to Sina.

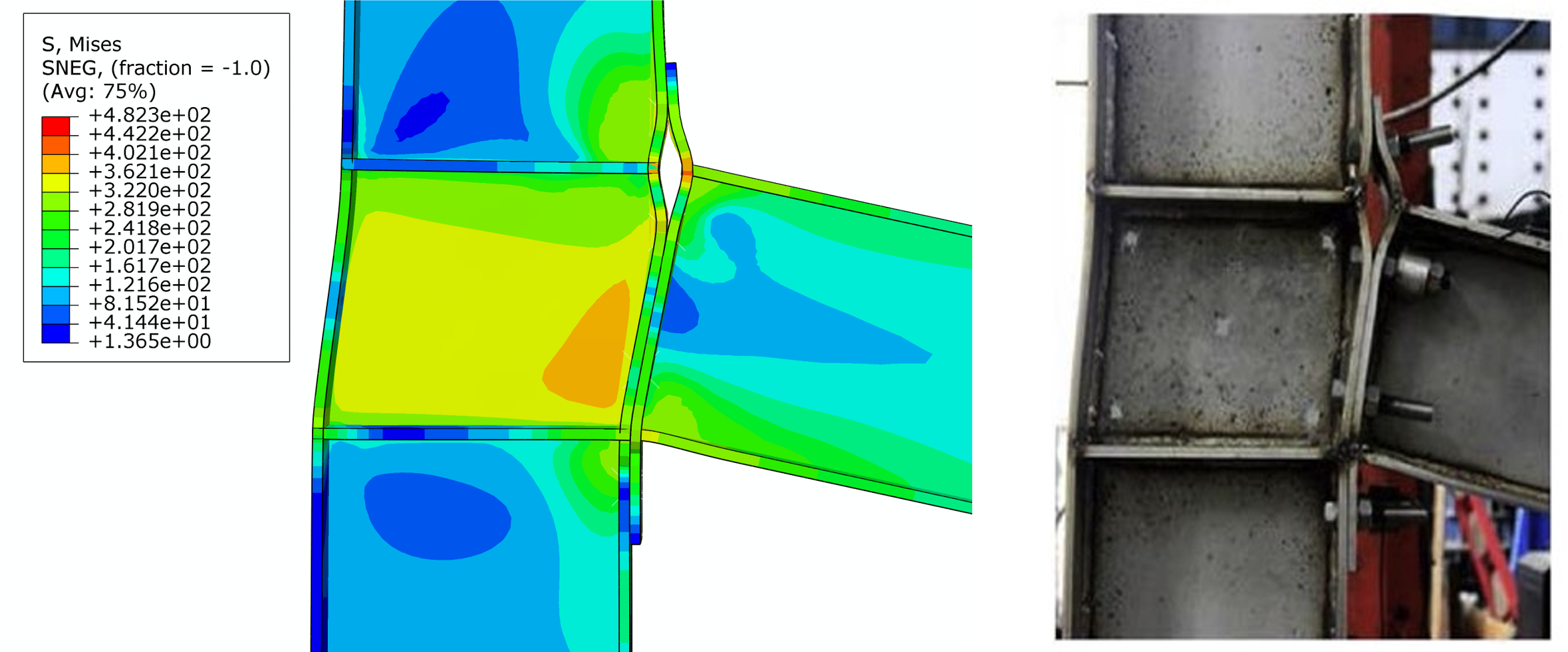

02 / FE / reference comparison 2
Supplied numerical and reference-test comparison 2. Reference-test photography and reference-data generation are not attributed to Sina.

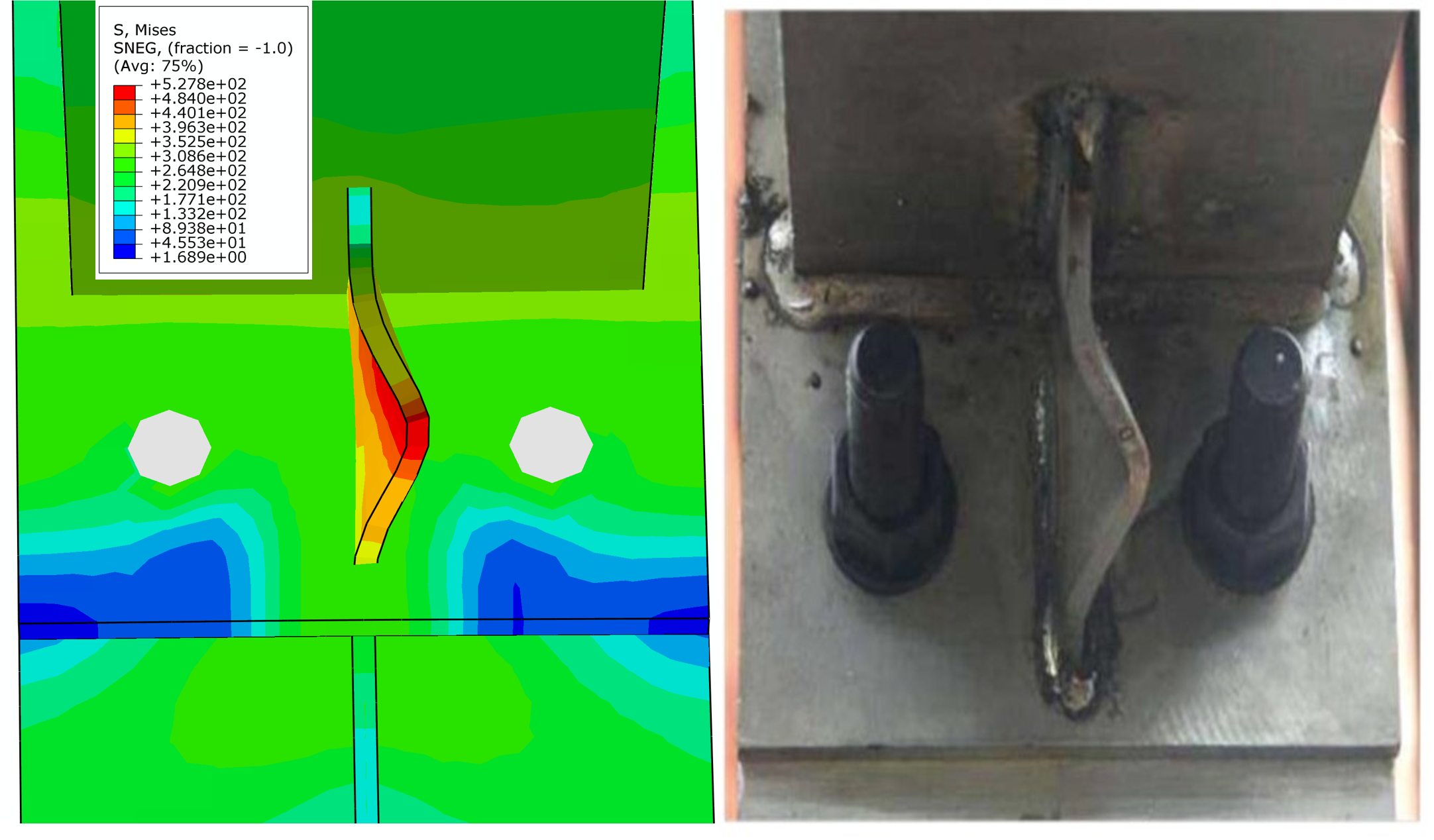

03 / FE / reference comparison 3
Supplied numerical and reference-test comparison 3. Reference-test photography and reference-data generation are not attributed to Sina.

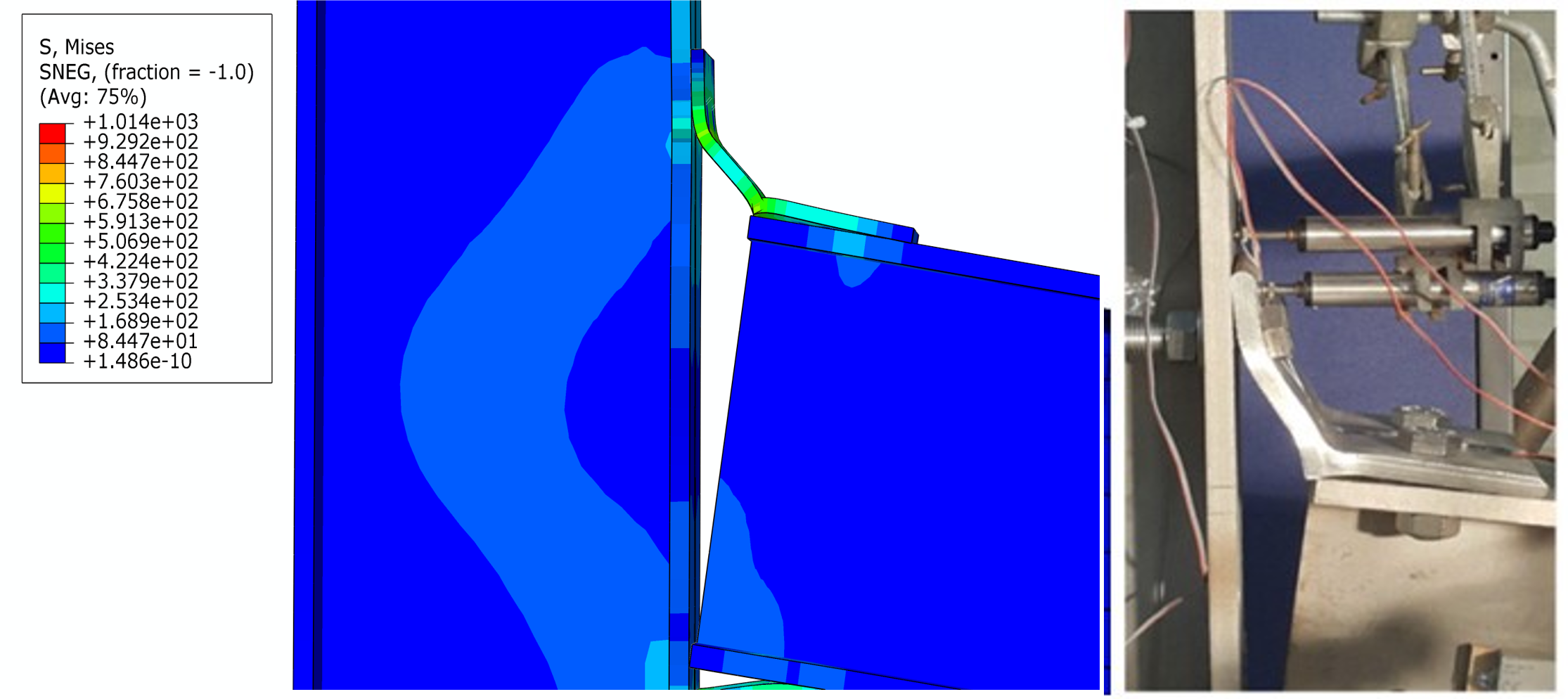

04 / FE / reference comparison 4
Supplied numerical and reference-test comparison 4. Reference-test photography and reference-data generation are not attributed to Sina.

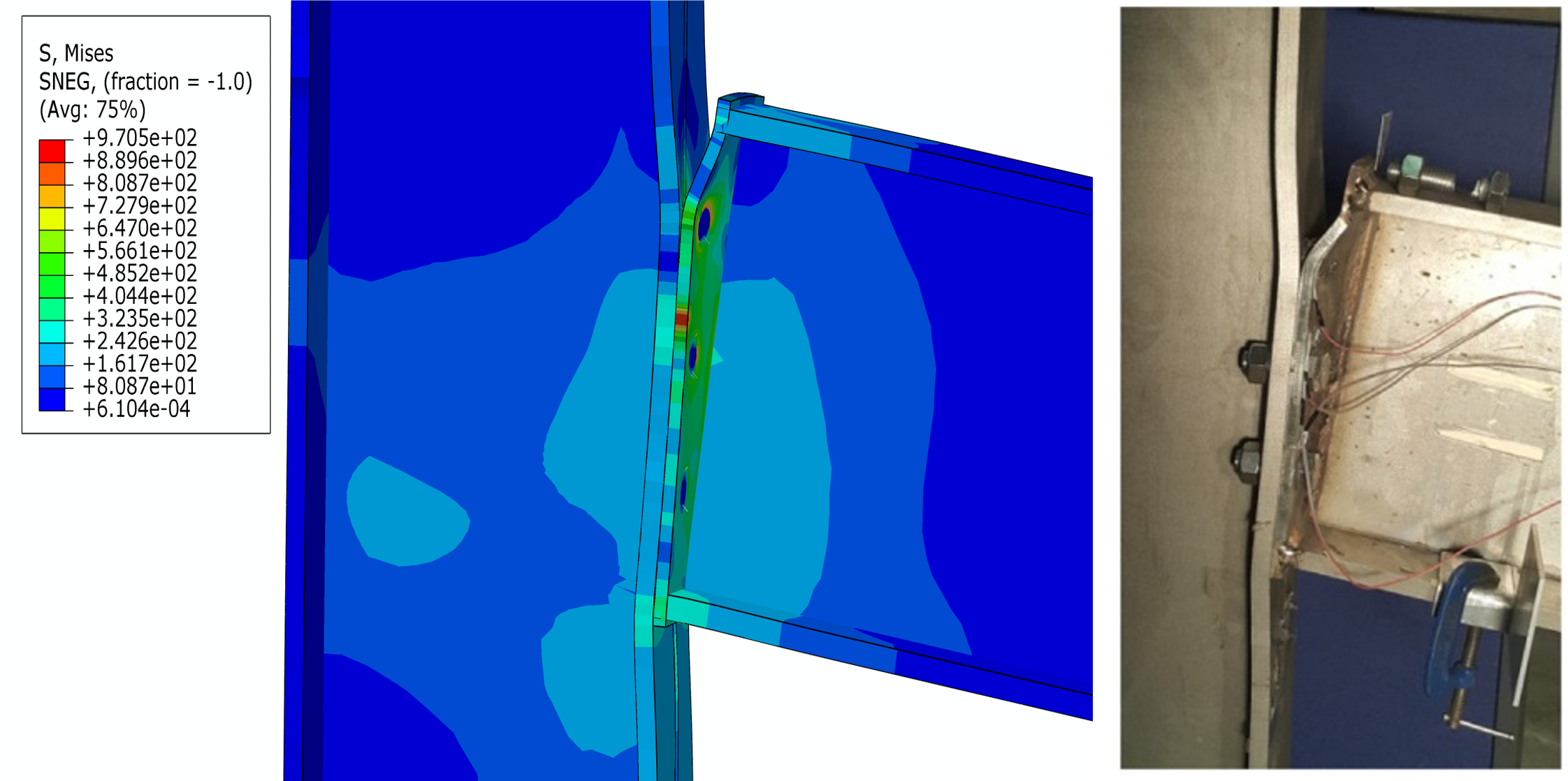

05 / FE / reference comparison 5
Supplied numerical and reference-test comparison 5. Reference-test photography and reference-data generation are not attributed to Sina.

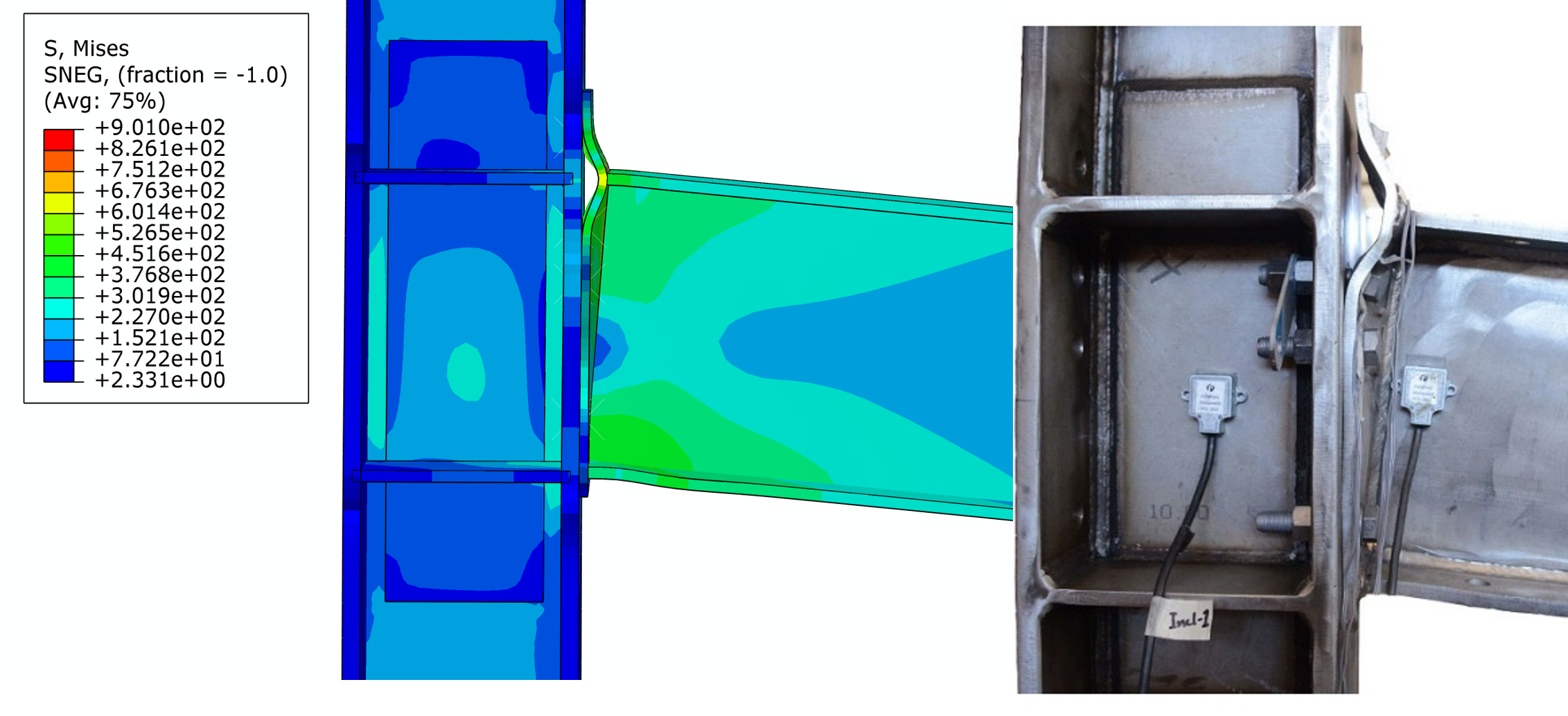

06 / FE / reference comparison 6
Supplied numerical and reference-test comparison 6. Reference-test photography and reference-data generation are not attributed to Sina.

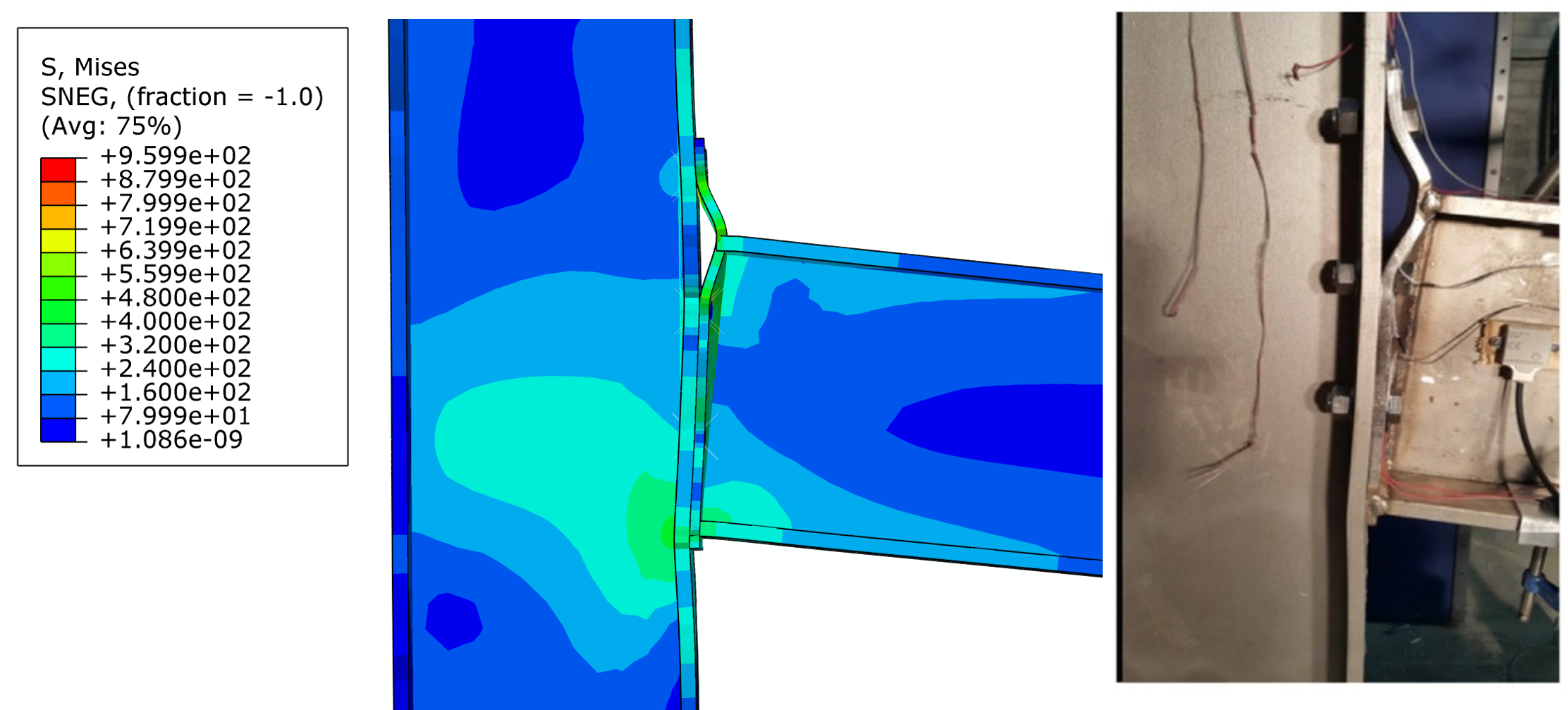

07 / FE / reference comparison 7
Supplied numerical and reference-test comparison 7. Reference-test photography and reference-data generation are not attributed to Sina.

Engineering record

Scope, method and evidence.

Personally credited GUI and published collaborative study. Dataset ownership and model-performance domains remain distinct from application development.

01Engineering question

Compare connection alternatives using the same input definitions.

Context: Structural steel.

02Role and documented scope

Research co-author · credited developer

03Methods and evidence

The research compares regression models for stainless-steel web-panel shear and uses SHAP to examine prediction behaviour. The personally credited interface exposes engineering features to a trained model. Reference-data generation and application development retain separate attribution.

Supplied research files support the scope shown. Authorship is distinguished from personal ownership of every dataset, test or model; an interface is not proof of current deployment.

Publication record · 10.1016/j.rineng.2024.103454

04Interpretation and limitations

No universal accuracy, engineering approval or field benefit is inferred from a selected output. Model domains and independent checks must be established for a new assignment.
